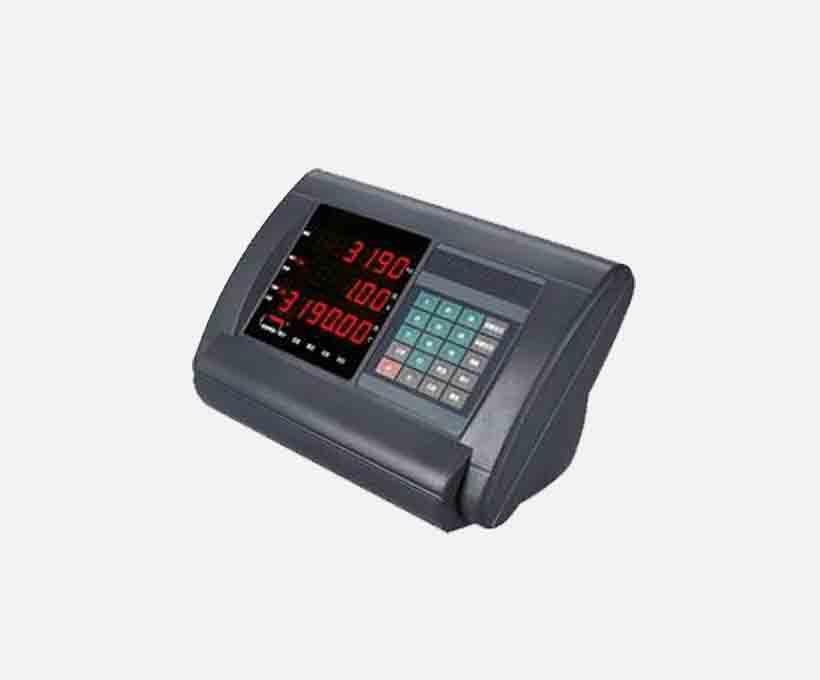

CIBI – DPW Counting Weight Indicators

Description

Piece Counting /Price computing Weight Indicator.  These 3 window counting weight indicators, are highly used for counting  purpose.

It displays , Total weight, Unit weight  & number of pieces . IT has quantity wise function and unit weight  wise function to determine the quantity. This can be used for weighing system with 1-6 loadcells.

Features

Weight indicator

• A/D readability 1/30000 and min counting precision 1/10000
• Use inner code to replace weight observing and analysis tolerance
• Zero-tracking range, Zero range (auto/manual) and zero speed setup
• Accumulation result display
• Price-computing or counting function selectable
• Direct input the unit weight and quantity-weight calculation, counting precision auto correction
• Indicate the battery volume or state, low battery alarm and auto power off protection

Application

For Piece Counting or Price Computing ,Bench and platform Scales.

Specification

MAKE	Cibi
Model	DPW  ( 3 Window Counting Scale)
(CAPACITY)	Any capacity x Upto 30000 divisions
Input voltage	-2mV to 13mV
Load Cell Excitation	5V
Optional Interface	Rs 232 C Serial  Communication.
POWER SOURCE	187 – 242 v AC / INBUILT BATTERY
BATTERY	RECHARGEABLE 6V 4 AH
DISPLAY	18 bits LED   , 10 status Indication
POWER CONSUMPTION	2W
