foundry weighing machine
The Best Foundry Weighing Machine For Molten Metal Ever.

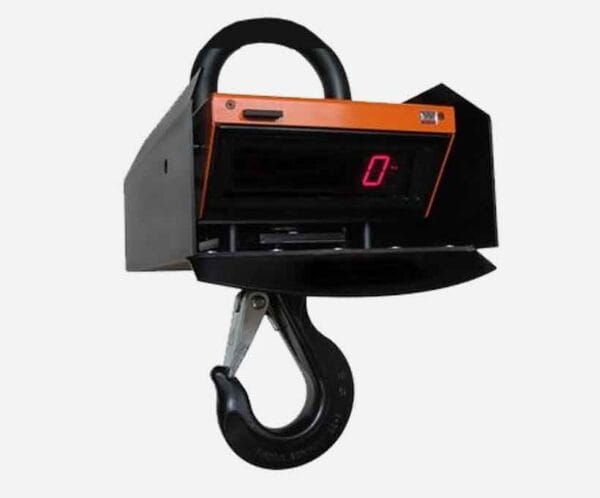

Crafted for resilience and shock resistance, the KGW crane scale stands out as an ideal solution for operations in elevated temperature settings. Its specialized heat protection housing enables precise weighing of materials with temperatures soaring up to 1,600°C. Designed for optimal performance in high-temperature environments, this crane scale features meticulously shielded and encapsulated load cells within the housing, ensuring the protection of measuring instruments against the rigors of significant heat fluctuations.
The load-bearing components of this exceptional industry scale are redundantly protected against falling, ensuring a mechanical safety factor of 5:1 of the rated load. KGW stands out as one of the safest foundry weighing machine in the market! giribrother.in
This foundry weighing machine can be operated remotely up to a distance of 30 m. During the casting process, the ‘subtractive tare function’ streamlines your processes and helps avoid casting errors.
All models can be upgraded with numerous accessories such as weighing data receiving units.
All EHP crane scales maintain a mechanical safety factor of 5:1. This means that these scales can carry five times the nominal load without tensile components breaking.
Compared to almost all competitor products, our crane scales are not only certified for weighing but, due to their high safety standards, can also be used for goods transport (according to EN 13155).
Features of KGW The ultimate Foundry Weighing Machine.
- Highest measuring accuracy of 0.03% of the final value.
- 3‑year warranty on accuracy and function of the load cell.
- 50mm LED display.
- Non-destructive steel housing in foundry design for hot operation.
- Fast advertising results.
- Automatic switch-off.
- Remote control included
- Calibration certificate included
- Heat protection included
- Fall protection and high impact resistance
- High-quality, long-term stable strain gauge load cell as load sensor
- Microprocessor-controlled weighing electronics
- No tare force – can be tarred over the entire weighing range.
- Mechanical safety factor of 5:1 of the rated load
- TÜV-tested, according to DIN 15400 / DGUV A1
- GOST standard certified
- Approved hoist assemblies and chain components
- Optional accessories such as weighing data units available
- Protection class IP 54
Product-areas where KGW Foundry Weighing Machine Used.
- Foundries (dosing, mixing in combination with magnets, spheroidal graphite, grey cast iron, etc.)
- Retrogressive weighing during dosing processes etc.
- Weighing of rolls, steel, coils, sheets and coils
Min Distance between Scale and High Temperature
| 1000 C | 1200 C | 1400 C | 1600 C |
| 1.6m | 1.8m | 2m | 2.2m |
Specifications of KGW Best Foundry Weighing Machine
Product-weighing:
| Model KGW (calibrated) |
Weighing range (kg) |
Scale weight (kg) |
Readability d (kg) |
|---|---|---|---|
| KGW 1 | 0 – 1.000 | 97 | 0,5 |
| KGW 2 | 0 – 2.000 | 97 | 1 |
| KGW 5 | 0 – 5.000 | 97 | 2 |
| KGW 10 | 0 – 10.000 | 103 | 5 |
| KGW 15 | 0 – 15.000 | 268 | 5 |
| KGW 20 | 0 – 20.000 | 268 | 10 |
| KGW 30 | 0 – 30.000 | 268 | 10 |
| KGW‑Y 50 | 0 – 50.000 | 660 | 20 |
| KGW‑Y 100 | 0 – 100.000 | 1200 | 50 |
| KGW‑Y 150 | 0 – 150.000 | 1500 | 100 |
| KGW‑Y 200 | 0 – 200.000 | 1700 | 100 |
